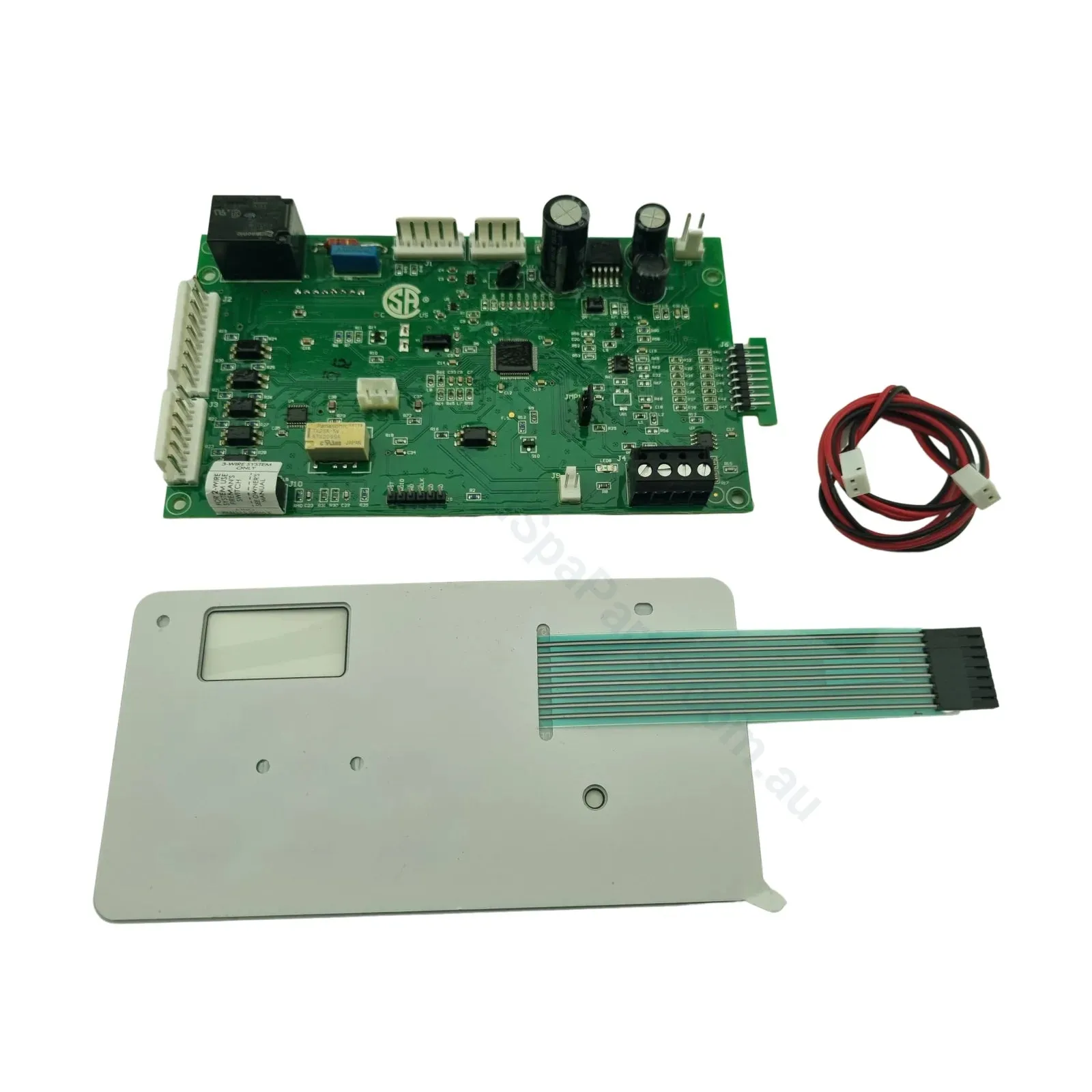

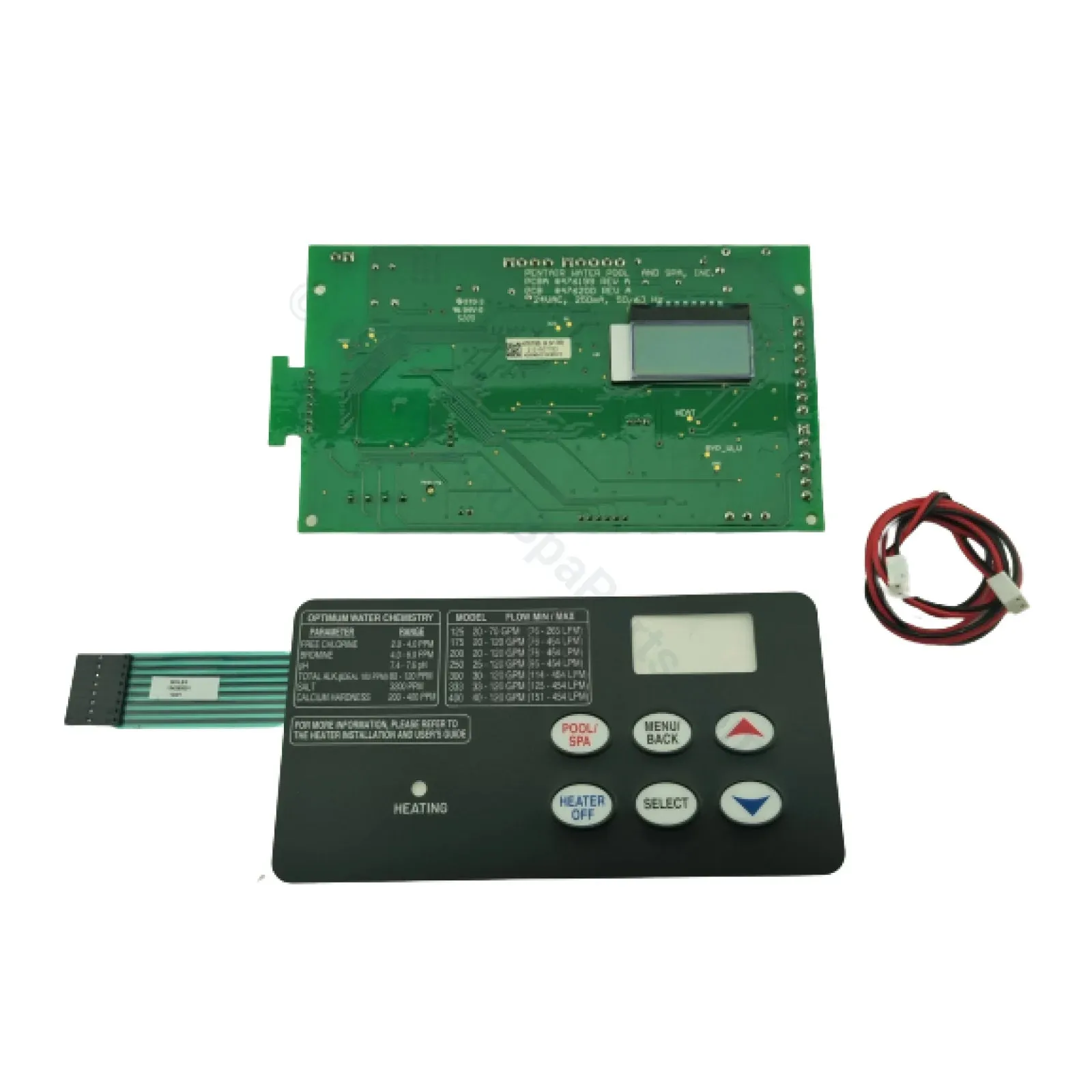

New style Genuine PCB & Membrane (touchpad) for Pentair Mastertemp, Sta-rite Max E Therm and Waterco Turbotemp. Replaces older style & . Old style is no longer available. Requires both parts to be replaced due to new styling. Images may be slightly different due to minor revisions.
This is not the un-approved cheap copy of these! This is a Genuine Pentair Product.
Stock Levels are Accurate. Main Control Board PCB Thermostat For Pentair Mastertemp, Waterco Turbotemp, Sta-Rite Max-E-Therm Gas Pool & Spa Heaters - 200 / 300 / 400 HD models. Sometimes corrode, particularly on the bottom of the circuit board. Can cause malfunctioning of the heater.
Pentair Mastertemp / Waterco Turbotemp Electrical Parts List:
- 2. / 3. / 4.
- 5. 60°C / 140°F
- 6. 55°C / 131°F
- 6b.
- 7. /
- 10.
- 12.
- 13. /
- 15.
- 16.
For other Pentair Mastertemp / Waterco Turbotemp spare parts, click the correct category below:
Pentair Mastertemp, Waterco Turbotemp, StaRite Max E Pro Error Codes:
Diagnostic LEDs / Error Messages & Causes:
- PS - Check / Replace . Signifies flow issues.
- HLS - Check / Replace High-Limit Switch/es (faults above or ) Signifies flow, bypass, governer issues, or other issues.
- AFS - Check / Replace . Signifies fan, air flow, or other issues.
- AGS - Check / Replace (faults above 60°C). Signifies flow, bypass, issues, or other issues. Can also be caused by a 45° Limit Switch on top of the manifold.
- SFS - Check / Replace (faults above 249°C). High or Low Flue Temperatures are a sign of significant combustion issues, or other issues.
- E01 - Fault. Replace .
- E05 - General Fault. Needs service. This can be caused by several issues.
- Showing Incorrect Temperature - Replace Thermistor. Check all filters clean. If thermistor shows corrosion, water balance is poor.
42002-0007s 2021 / 472610Z replaced by 461105
